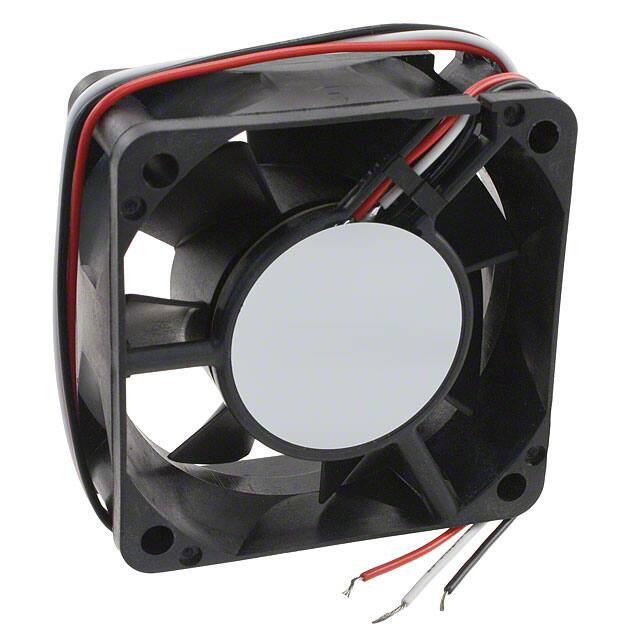

NMB Technologies Corporation 2410ML-04W-B49-B50

Mfr.Part #:

2410ML-04W-B49-B50
Description:
2410ML-04W-B49-B50 datasheet pdf and DC Brushless Fans (BLDC) product details from NMB Technologies Corporation stock available at Zeano

RoHS Status:

RoHS

Payment:

Payment

Delivery:

Delivery

Quick Request Quote

Do you want a lower wholesale price? Please send us an inquiry, and we will respond immediately.

Latest Posts

A switch solenoid converts electrical energy into mechanical movement by using a simple principle:...
Voltage controlled oscillator takes a voltage (like from a battery) and turns it into...
Types of computer cables: USB cables, HDMI cables, Ethernet cables, power cables,VGA and display
A potentiometer is like a dimmer switch for electronic devices - it controls the...
Security

Buy With Confidence

ISO 9001
ISO 9001
ISO 45001
ISO 45001
ISO 13485
ISO 13485
ISO 14001
ISO 14001
SMTA
ASA

Specifications

Product Details

Product Comparison

Factory Lead Time
18 Weeks
Package / Case

Package / Case refers to the physical housing or enclosure that encapsulates an electronic component. It provides protection, facilitates handling, and enables electrical connections. The package type determines the component's size, shape, pin configuration, and mounting options. Common package types include DIP (dual in-line package), SOIC (small outline integrated circuit), and BGA (ball grid array). The package also influences the component's thermal and electrical performance.

Axial
Weight
0.143lb 64.86g
Material - Frame
Plastic
Operating Temperature

Operating Temperature is the range of temperatures at which an electronic component can function properly. It is typically specified in degrees Celsius (°C) and indicates the minimum and maximum temperatures at which the component can operate without experiencing damage or degradation. Operating Temperature is an important parameter to consider when designing electronic circuits, as it ensures that the components will function reliably in the intended operating environment.

14~158°F -10°C~70°C
Series

Series, in the context of electronic components, refers to the arrangement of components in a circuit. When components are connected in series, they form a single path for current to flow through. The total resistance of a series circuit is the sum of the individual resistances of each component. Series connections are often used to control the flow of current in a circuit, as the total resistance can be adjusted by changing the number or type of components in the series.

2410ML
Published
2004
Size / Dimension
Square - 60mm Lx60mm H
Feature
Speed Sensor (Tach)
Part Status

Part Status is an electronic component parameter that indicates the availability and production status of a component. It is typically used to inform customers about the availability of a component, whether it is in production, end-of-life, or obsolete. Part Status can also provide information about any restrictions or limitations on the component's use, such as whether it is only available for certain applications or if it has been discontinued.

Active
Moisture Sensitivity Level (MSL)

Moisture Sensitivity Level (MSL) is a measure of the susceptibility of a surface mount electronic component to moisture-induced damage during soldering. It is classified into six levels, from 1 (least sensitive) to 6 (most sensitive). MSL is determined by the materials used in the component's construction, including the solderability of its terminals and the presence of moisture-absorbing materials. Components with higher MSL ratings require more stringent handling and storage conditions to prevent moisture absorption and subsequent damage during soldering.

Not Applicable
Termination

Termination refers to the electrical characteristics of a component or circuit at its input or output terminals. It describes how the component or circuit interacts with external signals or devices. Termination can involve matching impedance, providing voltage or current regulation, or filtering unwanted signals. Proper termination ensures efficient signal transfer, minimizes reflections, and prevents damage to components. It is crucial for maintaining signal integrity and optimizing circuit performance.

3 Wire Leads
Voltage - Rated

Voltage - Rated refers to the maximum voltage that an electronic component can withstand without being damaged. It is typically specified in volts (V) and is an important parameter to consider when selecting components for a circuit. Exceeding the rated voltage can lead to component failure, so it is important to ensure that the voltage applied to a component does not exceed its rated voltage.

12VDC
Current Rating (Amps)
0.170A
Max Power Dissipation
2.04W
Current Rating

Current Rating is the maximum amount of current that an electronic component can safely handle without overheating or failing. It is typically expressed in amperes (A) or milliamperes (mA). Exceeding the current rating can damage the component and potentially create a safety hazard. The current rating is determined by the physical characteristics of the component, such as its size, material, and construction.

170mA
Approval Agency
CE, CSA, UL, VDE
RPM
4550 RPM
Bearing Type
Ball
Fan Type
Tubeaxial
Air Flow
21.5 CFM (0.602m3/min)
Noise

Noise in electronic components refers to unwanted electrical or electromagnetic signals that interfere with the desired signal. It can be caused by various factors, such as thermal agitation, shot noise, and flicker noise. Noise is typically measured in decibels (dB) or volts per root hertz (V/√Hz). A higher noise figure indicates a higher level of noise. Noise can degrade the performance of electronic circuits by reducing signal-to-noise ratio (SNR) and increasing errors.

33.5 dB
Voltage Range

Voltage Range is the range of voltages that an electronic component can withstand without being damaged or malfunctioning. It is typically specified in volts (V) and can be either a single value or a range of values. For example, a component with a voltage range of 5V to 12V can withstand voltages between 5V and 12V without being damaged. Exceeding the voltage range can cause the component to fail or malfunction, so it is important to ensure that the voltage applied to a component does not exceed its voltage range.

6V~13.8VDC
Static Pressure
0.208 in H2O (51.8 Pa)
RoHS Status
RoHS Compliant
2410ML-04W-B49-B50 Overview
This product is manufactured by NMB Technologies Corporation and belongs to the category of DC Fans. The images we provide are for reference only, for detailed product information please see specification sheet 2410ML-04W-B49-B50 or the datasheet in PDF format. As a professional electronic components distributor, Zeano has five million electronic components available. Additionally, we have over 500,000 electronic components in stock ready for immediate shipment. If you have requirements, you can send us a quotation form to get the price of 2410ML-04W-B49-B50. We attach great importance to our customers' purchasing experience and are willing to establish a long-term cooperative relationship with you. If you have any questions or requirements, please feel free to contact us.
2410ML-04W-B49-B50 More Descriptions
DC Fans DC Axial Fan, 60x60x25mm, 12VDC, 21.5CFM, Rib Mount, 3-Lead Wires, Tachometer
Tubeaxial |Nmb Technologies 2410ML-04W-B49-B50
FAN AXIAL 60X25MM 12VDC WIRE
  • Image
    Part Number
    Manufacturer
    Factory Lead Time
    Package / Case
    Weight
    Material - Frame
    Operating Temperature
    Series
    Published
    Size / Dimension
    Feature
    Part Status
    Moisture Sensitivity Level (MSL)
    Termination
    Voltage - Rated
    Current Rating (Amps)
    Max Power Dissipation
    Current Rating
    Approval Agency
    RPM
    Bearing Type
    Fan Type
    Air Flow
    Noise
    Voltage Range
    Static Pressure
    RoHS Status
    View Compare
  • 2410ML-04W-B49-B50
    2410ML-04W-B49-B50
    18 Weeks
    Axial
    0.143lb 64.86g
    Plastic
    14~158°F -10°C~70°C
    2410ML
    2004
    Square - 60mm Lx60mm H
    Speed Sensor (Tach)
    Active
    Not Applicable
    3 Wire Leads
    12VDC
    0.170A
    2.04W
    170mA
    CE, CSA, UL, VDE
    4550 RPM
    Ball
    Tubeaxial
    21.5 CFM (0.602m3/min)
    33.5 dB
    6V~13.8VDC
    0.208 in H2O (51.8 Pa)
    RoHS Compliant
    -
  • 2410ML-05W-B19-B50
    20 Weeks
    Axial
    0.143lb 64.86g
    Plastic
    14~158°F -10°C~70°C
    2410ML
    2004
    Square - 60mm Lx60mm H
    Speed Sensor (Tach)
    Active
    Not Applicable
    3 Wire Leads
    24VDC
    0.060A
    1.44W
    60mA
    CE, CSA, UL, VDE
    2950 RPM
    Ball
    Tubeaxial
    13.7 CFM (0.384m3/min)
    23.0 dB
    10V~27.6VDC
    0.083 in H2O (20.6 Pa)
    RoHS Compliant
  • 2410ML-04W-B49-E00
    -
    Axial
    0.143lb 64.86g
    Plastic
    14~158°F -10°C~70°C
    2410ML
    2004
    Square - 60mm Lx60mm H
    Locked Rotor Sensor
    Obsolete
    Not Applicable
    3 Wire Leads
    12VDC
    0.170A
    2.04W
    170mA
    CE, CSA, UL, VDE
    4550 RPM
    Ball
    Tubeaxial
    21.5 CFM (0.602m3/min)
    33.5 dB
    6V~13.8VDC
    0.208 in H2O (51.8 Pa)
    RoHS Compliant
